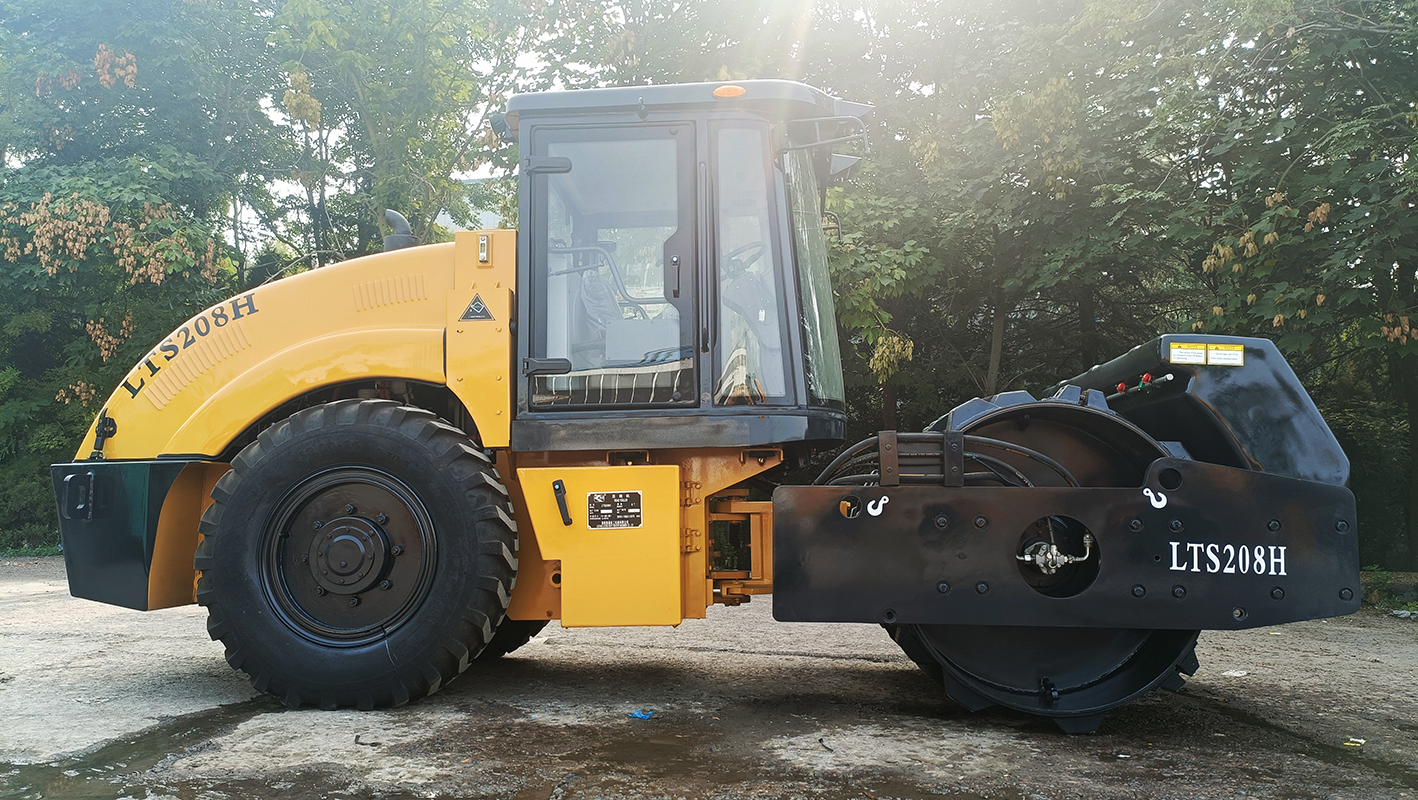

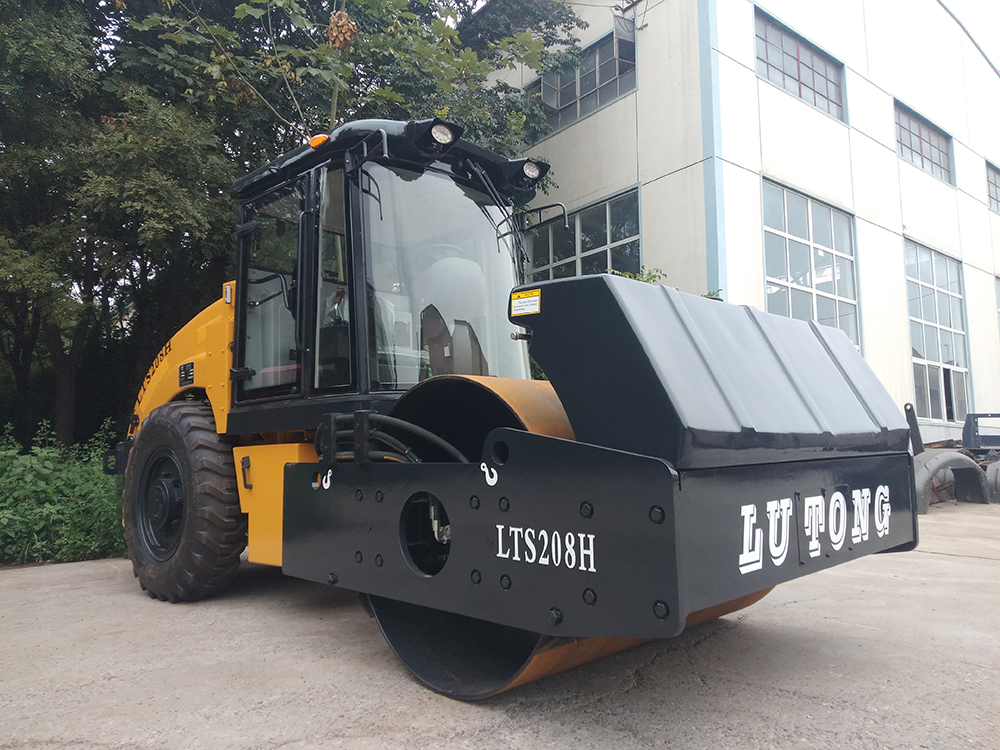

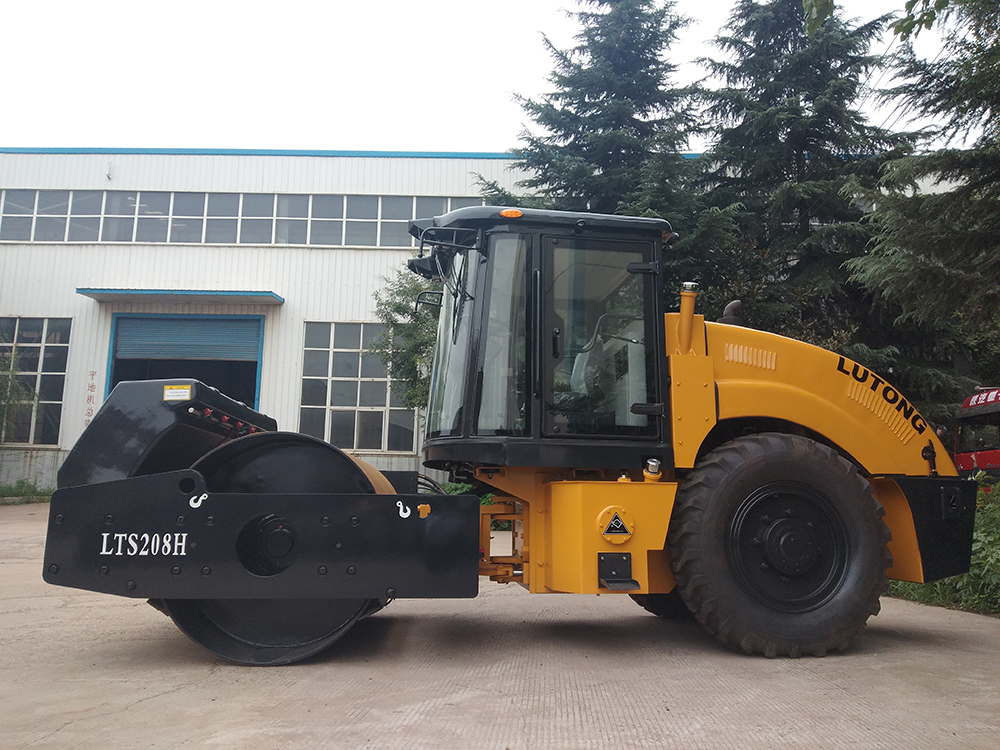

Luoyang Lutong Heavy Industry LTS208H 8ton hydraulic single drum road roller: specifications, images, introduction, and parts details

LTS208H Hydraulic rear driver vibratory roller is manufactured according to the international advanced technology and by use of imported components from abroad. The machine is super heavy-duty vibratory roller, possesses a great working mass and strong centrifugal force. It is the best compaction equipment of high quality and high effect in the large-scale mechanized construction. This machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sandy soil etc. Also it can effect good compaction in cohesive material, There-fore the machine an ideal equipment for expressway. mining road, embankment, sea port 208 and industrial sites.


Main Characteristic:

1, Power System: CUMMINS turbocharged diesel engine, have high coefficient power reserve. Which comply with the operating condition above 4000 meters altitude

2, Full hydraulic and double drive, Hydraulic vibration, Hydraulic articulated steering, advanced technology, Blocking the oil supply to Brake the vehicle, safe and reliable.

3, Streamline outline, circular windshield glass and curvy hood form a unique style.

4, Hydraulic system are of the 90 series made by American manufacturer DANFOSS

6, Equipped with padfoot or removal padfoot as option.


Main Technical parameters

Model	LTS208H
Operating mass	8000kg
Static linear load	230N/cm
Vibration amplitude	0.4mm
Centrifugal force	70Kn
Vibration frequency	43Hz
Travel speed	0-10Km/h
Ground clearance	360mm
Electrical voltage	24V
Tire size	12.0-20
Grade ability	25%
Turning radius	6000mm
Overall dimension (LxWxH)	5030x1880x2570mm
Drum rim thickness	16mm
Drum width	1700mm
Wheel base	2684mm
Diesel engine power	75Kw/2200rpm
Diesel engine model	CUMMINS4BT3.9
Fuel tank capacity	130L
Hydraulic tank capacity	130L
Driving system	DANFOSS
Ship	2units/40HQ
