Luoyang Lutong Heavy Industry LTS214H 14ton hydraulic single drum road roller: specifications, images, introduction, and parts details

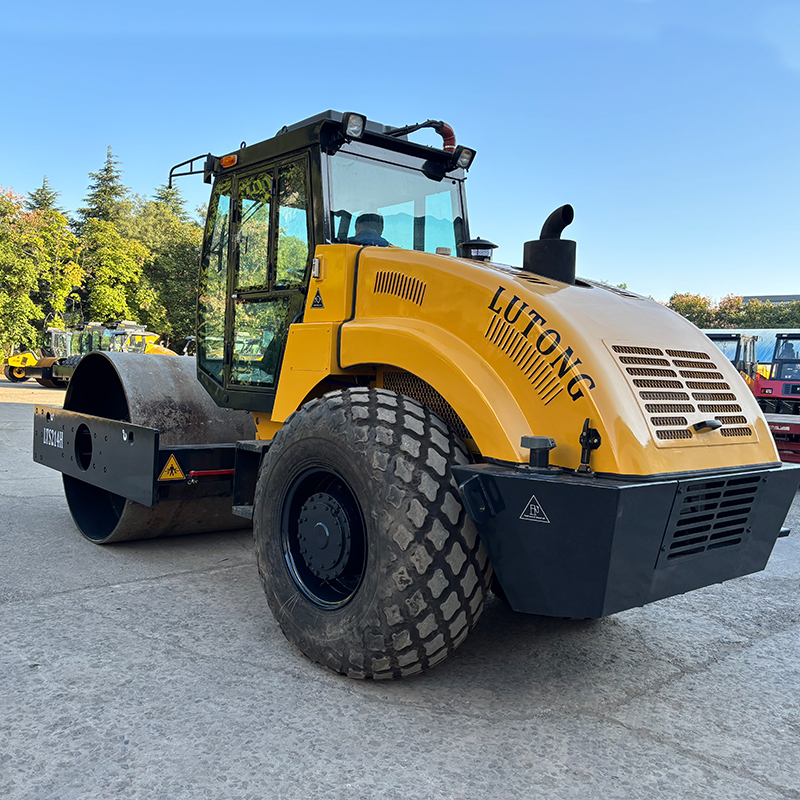

LTS214H 背景图 800x800 2.jpg

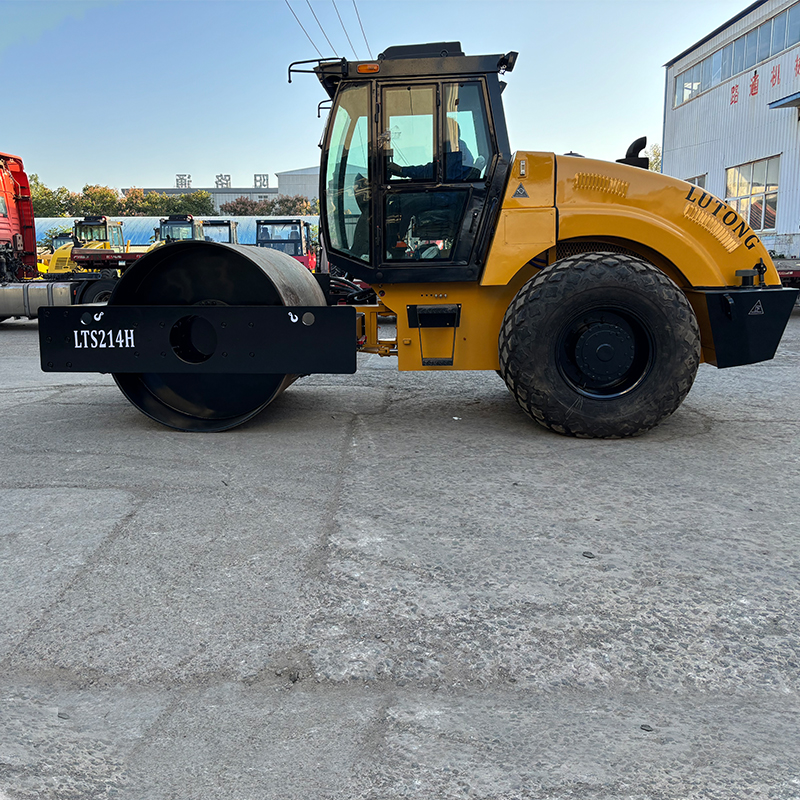

LTS214H 背景图 800x800 4.jpg

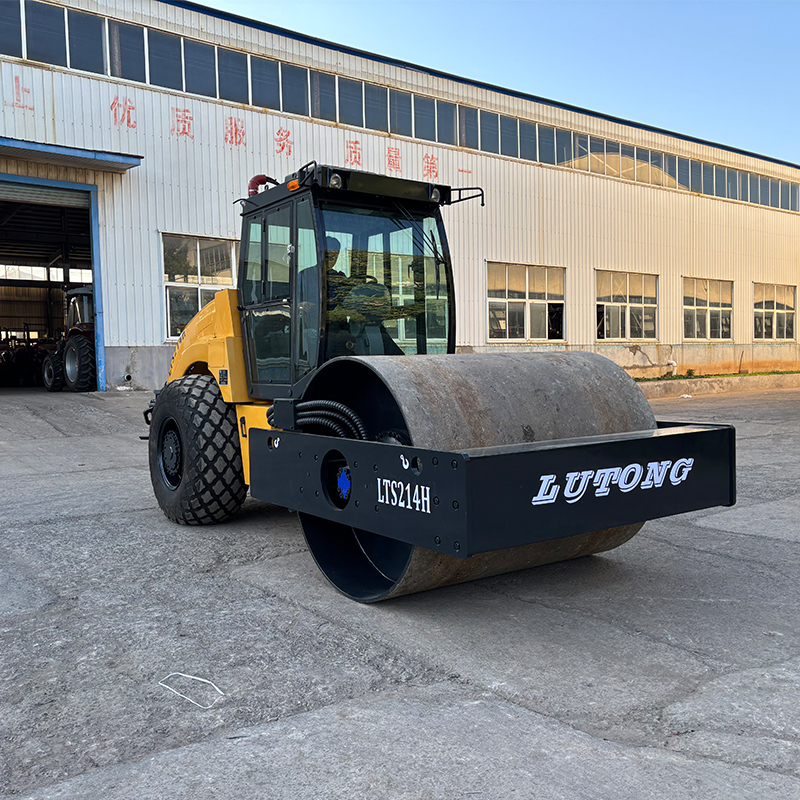

LTS214H 背景图 800x800 5.jpg

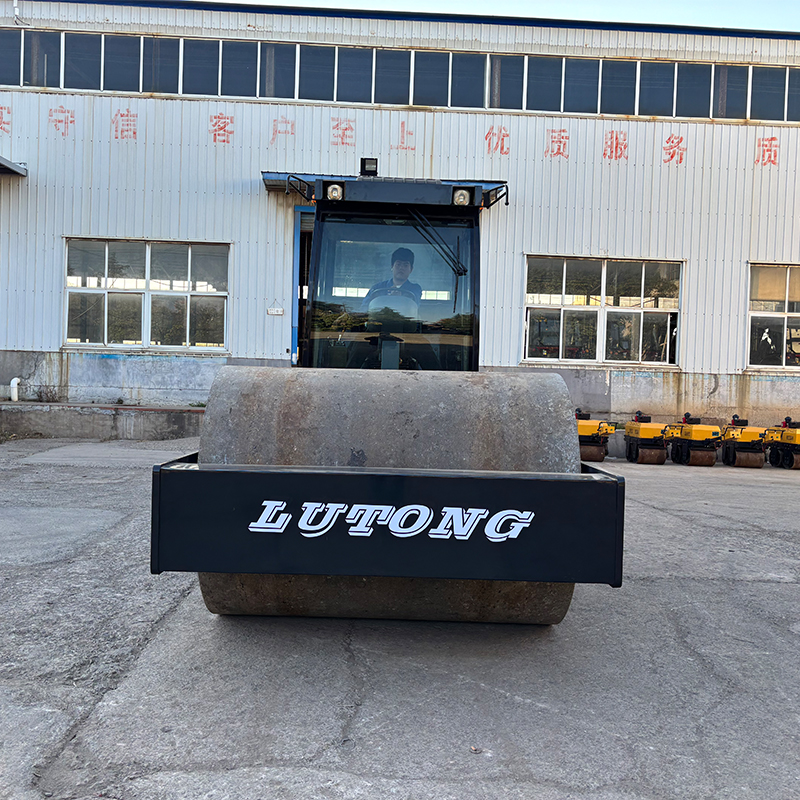

LTS214H 背景图 800x800 6.jpg

LTS214H 背景图 800x800 7.jpg

LTS214H Hydraulic rear driver vibratory roller is manufactured according to the international advanced technology and by use of imported components from abroad. The machine is super heavy-duty vibratory roller, possesses a great working mass and strong centrifugal force. It is the best compaction equipment of high quality and high effect in the large-scale mechanized construction. This machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sandy soil etc. Also it can effect good compaction in cohesive material, There-fore the machine an ideal equipment for expressway. mining road, embankment, sea port and industrial sites.

Main Characteristic:

1, Power System: CUMMINS turbocharged diesel engine, have high coefficient power reserve. Which comply with the operating condition above 4000 meters altitude

2, Full hydraulic and double drive, Hydraulic vibration, Hydraulic articulated steering, advanced technology, Blocking the oil supply to Brake the vehicle, safe and reliable.

3, Streamline outline, circular windshield glass and curvy hood form a unique style.

4, Hydraulic system are of the 90 series made by American manufacturer DANFOSS

6, Equipped with padfoot or removal padfoot as option

Main Technical parameters

Model	LTS214H
Operating mass	14000kg
Static linear load	326N/cm
Vibration amplitude	1.7/0.8mm
Centrifugal force	290/180Kn
Vibration frequency	29/35Hz
Travel speed	0-12Km/h
Ground clearance	432mm
Electrical voltage	24V
Tire size	17.5-25
Grade ability	30%
Turning radius	7000mm
Overall dimension (LxWxH)	5900x2280x3050mm
Drum rim thickness	24mm
Drum width	2100mm
Wheel base	3185mm
Diesel engine power	110/2200rpm
Diesel engine model	CUMMINS6BT5.9
Fuel tank capacity	220L
Hydraulic tank capacity	160L
Driving system	DANFOSS
Ship	1 unit/40HQ
Optional: removable padfoot
