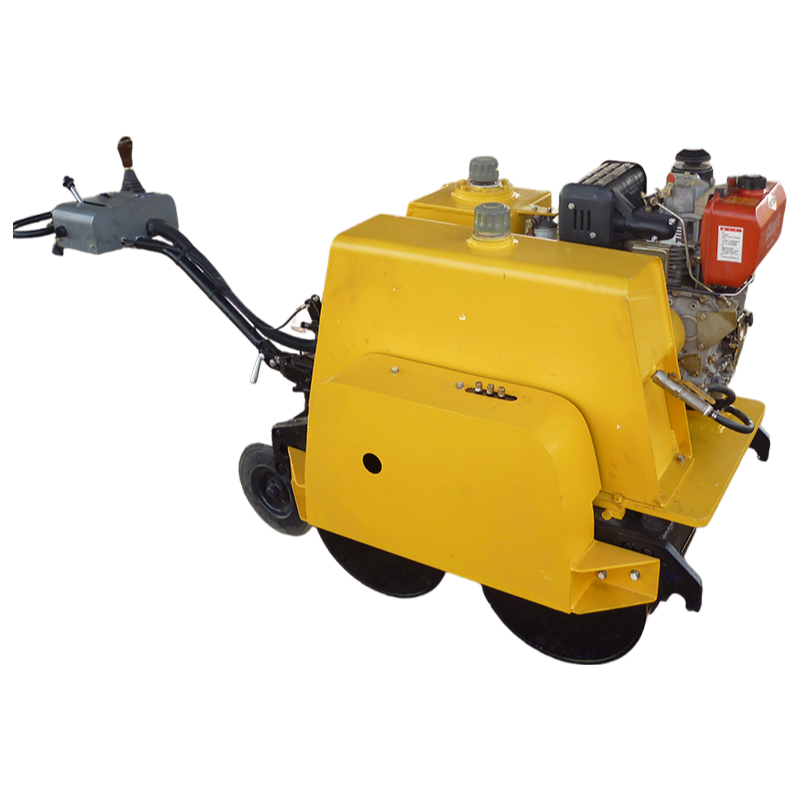

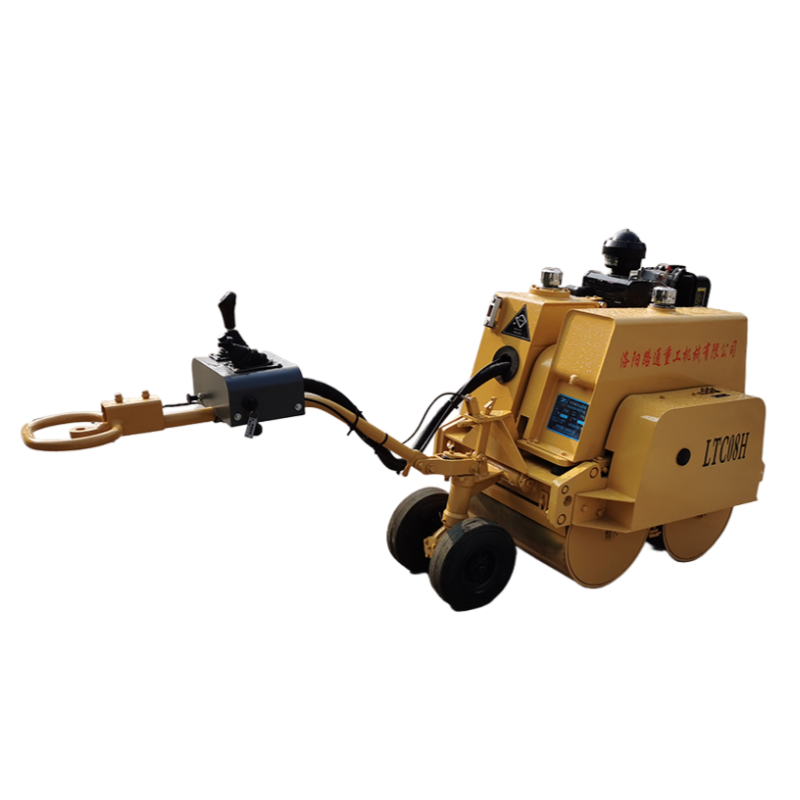

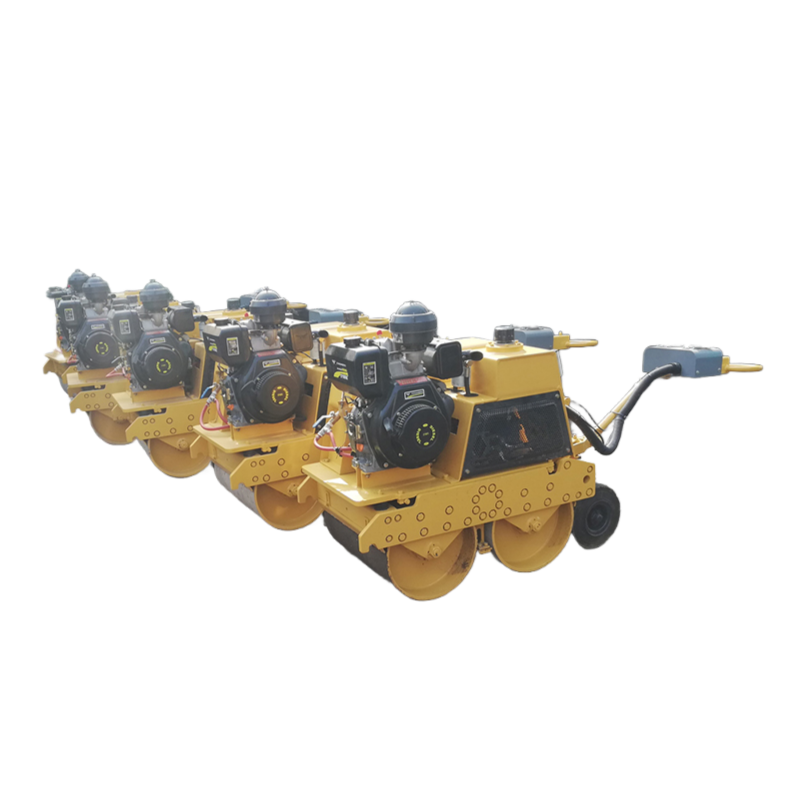

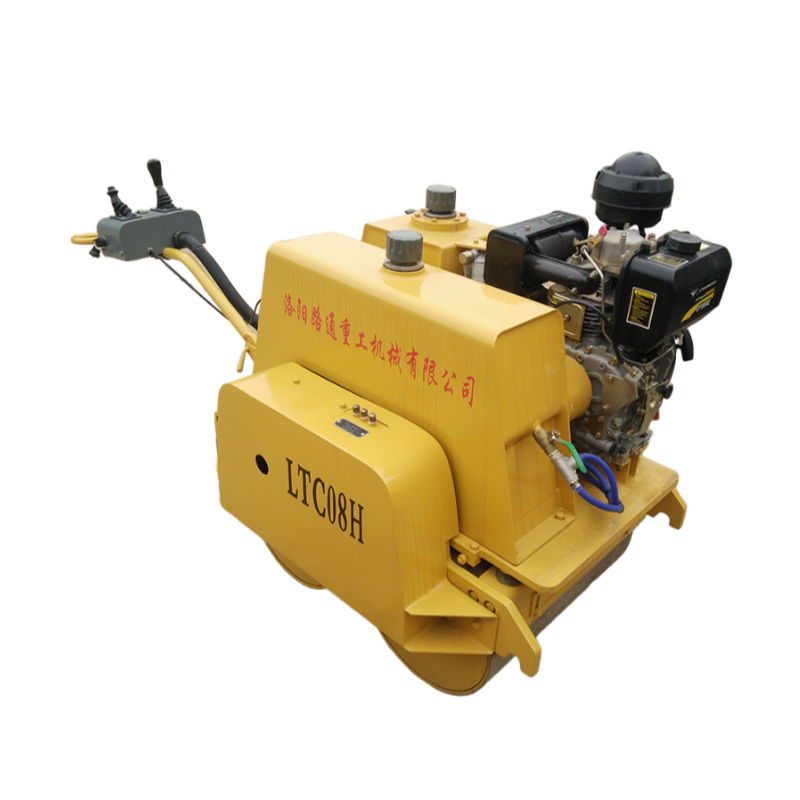

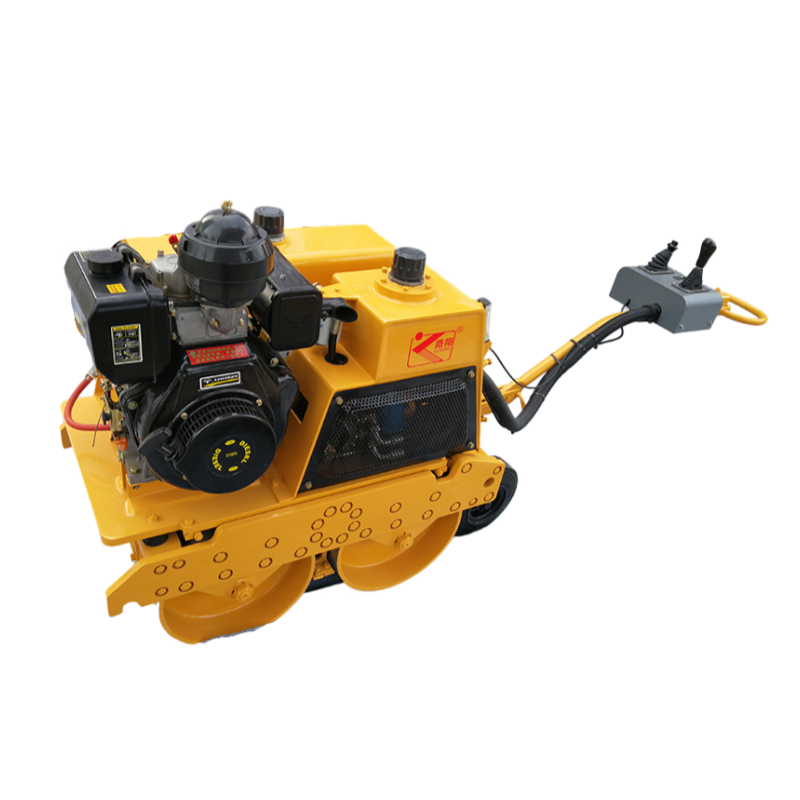

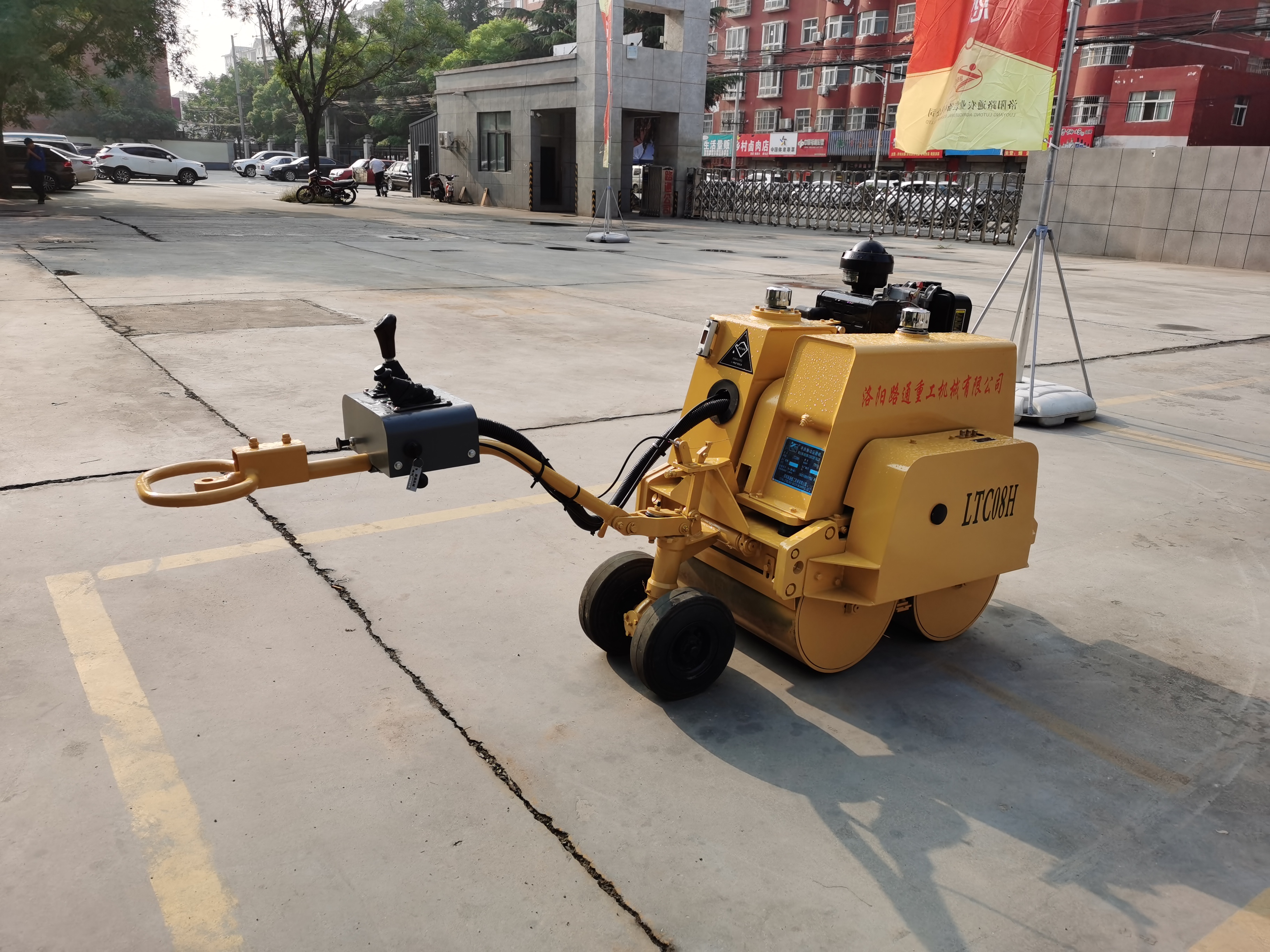

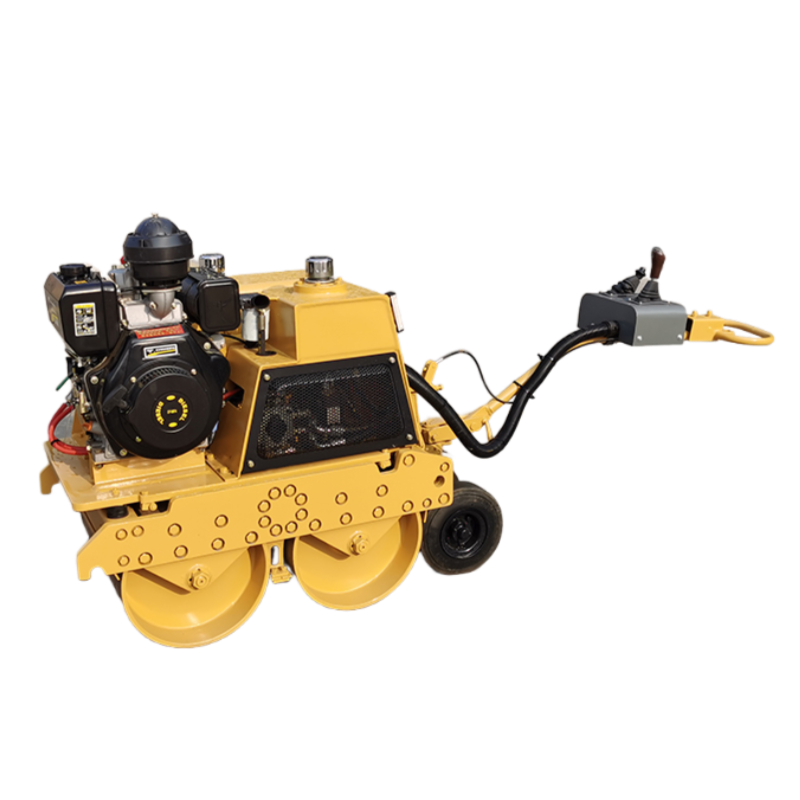

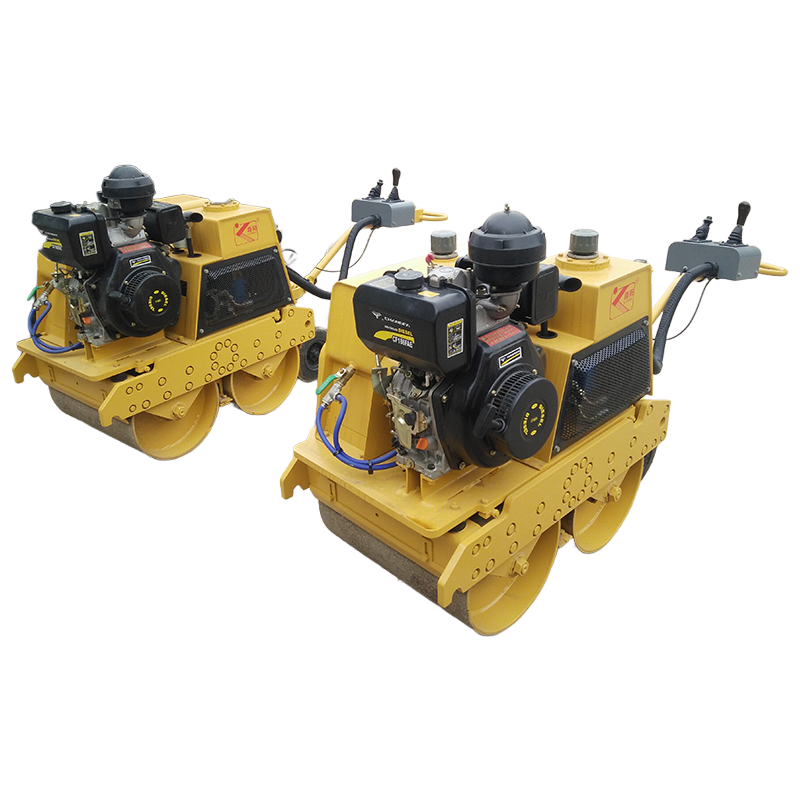

Luoyang Lutong LTC08H road roller (China): model, parameters, images, price, parts

产品分类 Product Categories

查看全部产品

相关文章 Related Articles

Introdução e Contato da Luoyang Lutong Machinery Company da China 2026-09-09

Información de la empresa y número de teléfono de la Compañía de Maquinaria Luoyang Lutong, China 2026-09-09

الصين، شركة لويانغ لوتونغ للمعدات الميكانيكية: تعريف بالشركة ورقم الهاتف 2026-09-09

Китайская машиностроительная компания Лоян Лутун: информация о компании и контактный телефон 2026-09-09

产品详情

Main Features

1.The whole machine has a nice shape, compact structure and small size; it can do rolling work in narrow ground;
2.All wheel drive, strong climbing capability;

3.Using CFI86F vertical direct-spray air-cooled engine, with both electrical and manual startup devices;
4.Designed with guide wheel and joystick, it is labor saving and easy to control.

5.Hydraulic travel,Adopt imported pump and starting motor,CVT.

Main Technical Parameters

Model		LTC08H
Operating mass	kg	770
Static linear load	N/cm	62/62
Vibration amplitude	mm	0.25
Vibration frequency	HZ	48
Centrifugal force	KN	12
Travel speed	Km/h	0-4
Grade ability	%	40
Turning radius	mm	2700
Turning angle	°	±30
Overall dimension	mm	2400X 880X 1100
Vibration drum diameter	mm	400
Drum width	mm	600
Wheel base	mm	470
Diesel power	kw	5.68
Diesel model		CF186F
Water tank capacity	L	32
