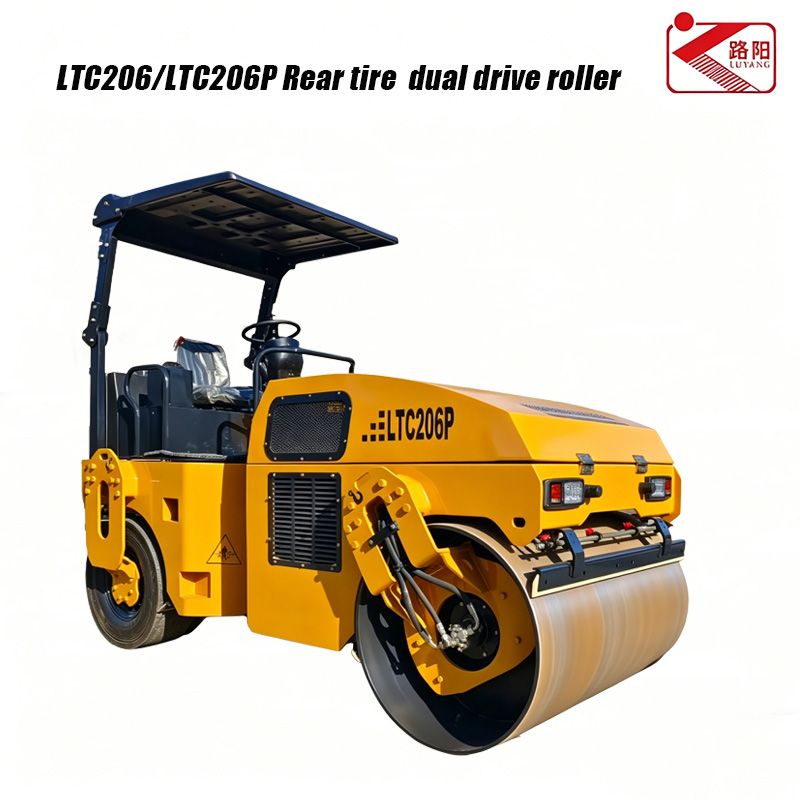

LTC206/206P洛阳路通6吨双驱双振双钢轮压路机
LTC206/206P洛阳路通6吨双驱双振双钢轮压路机
LTC206/206P洛阳路通6吨双驱双振双钢轮压路机

主要特点 Main Features● 配置国四排放柴油机,功率大,油耗低,节能环保。Chinese national stage IV emission

更新时间

2026-06-27

厂商性质

路通厂家

浏览量

904

或拨打:17538882022

产品详情

    主要特点 Main   Features
    ● 配置国四排放柴油机,功率大,油耗低,节能环保。



    Chinese national stage IV emission standard diesel engine is equipped.
    ● 前后轮液压驱动,采用柱塞泵和大扭矩马达,无级变速,爬坡能力强。






    Double drums are hydraulic drive,using plunger pump and high torque motor,continuously  variable  speed,
    strong  slope  ability.



    · 前后钢轮振动,轮体独特的润滑结构,轮体在转动和振动时,振动轴承得到充分的润滑,大大提高了轴承的寿命。
       Double  qrums  vibrate  with  the  unique  lubrication  structure  providing  sufficient  lubrication  to  the  vibrating  bearings
       during  rotation  and  vibration,greatly  improving  the  service  life  of  the  bearings.
    ● 电控起振,可实现前后轮单独振动。液压转向,铰接式车架,操作轻便灵活。




    Electronic  control  for  vibration  initiation,enabling  separate  vibration  of  the  front  and  rear  wheels.Hydraulic
    steering,articulated  frame,easy  and  flexible  operation.
    ● 钢轮配置电控酒水,满足用户不同时期不同场合施工需要。



    Steel wheels are equipped with electrically controlled drinks to meet the construction needs of users in different
    periods  and  occasions.


    ● 液压行走制动,安全可靠。大开起机罩,维修保养触手可得。
    Hydraulic  walking  brake,safe  and  reliable.Open  the  hood  wide,and  maintenance  and  repair  tips  are  within  reach.

    主要技术参数 Main  Technical  Parameters



    型 号 M O D E LLTC206LTC206P

    车辆重量 Operating masskg5700 5700

    静线载荷(前/后) Static linear loadN/cm200/180200/270



    行走速度 Travel speedkm/h00-1200-12

    柴油机功率/转速 Diesel engine power/speedKw/r/min36.8/240036.8/2400



    转弯半径(外) Turning speedmm5400 5400

    离地间隙 Ground clearancemm300 300



    轮距 Track widthmm2460 2460

    后轮轮胎型号 Rear tire model//10.5/80-16

    后轮轮胎数量 Number of rear tires//4

    压实宽度 Compaction widthmm1500 1500

    钢轮直径 Drum diametermm900 900

    钢轮壳厚度 Steel wheel shell thicknessmm20 20

    理论爬坡能力 Grade ability%30 35

    转向角度 Steering Angleo30 30

    振动频率(前) Vibration frequency (front)Hz55 55

    振动频率(后) Vibration frequency (after)Hz50 55

    振动幅度 Vibration amplitudemm0.6 0.6

    激振力 Centrifugal forceKN60×260

    洒水系统型式 Sprinkle model
    电控洒水Electric sprinkler电控洒水Electric sprinkler



    液压箱容量 Hydrauli tank capacityL110 110

    柴油箱容量 Fuel tank capacityL110 100

    水箱容量 Water tank capacityL200 200



    外形尺寸(长x宽x高) Dimensions  (LxWxH)mm3380×1650x27503380x1650x2750

    本厂产品随技术进步将不断改进,样本所列参数和结构特性与实物差异之处以实物为准
